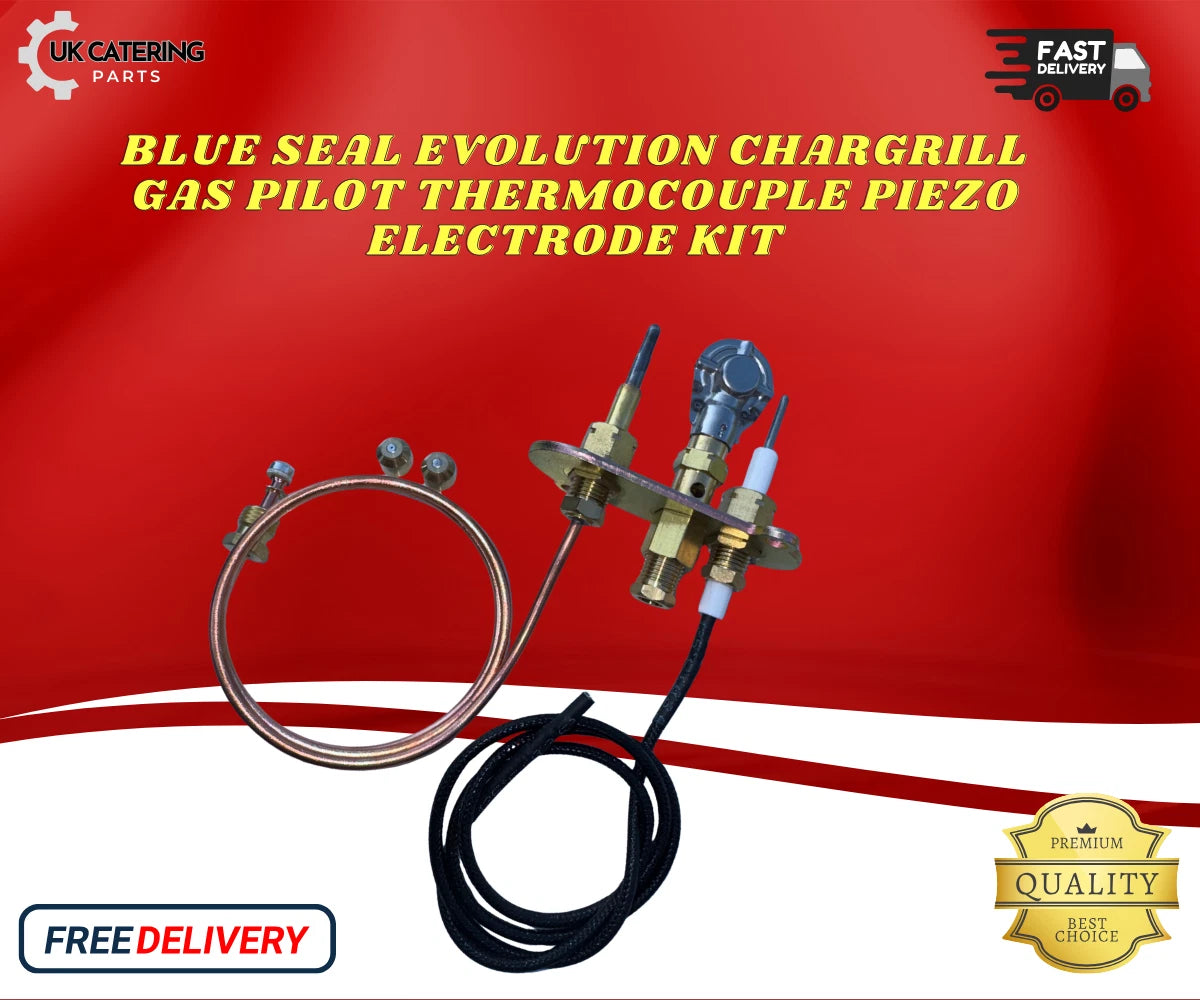

Pilot Burner Kit Blue Seal 232229 for Evolution Gas Griddles

Blue Seal 232229 Pilot Burner Kit for Evolution Series Griddles, Chargrills and BBQs

Restore reliable ignition and flame-safety operation with this replacement Blue Seal 232229 pilot burner kit, suitable for selected Blue Seal Evolution Series gas griddles, chargrills and barbecue units.

The kit includes a three-way pilot head, ceramic ignition electrode, 900mm thermocouple, high-temperature ignition lead and natural gas injector. It is ideal for replacing worn, damaged or faulty pilot components in compatible commercial catering equipment.

Key Features

• Replacement pilot burner kit for selected Blue Seal appliances

• Blue Seal part reference: 232229

• Three-way pilot head assembly

• Includes 900mm thermocouple

• Ceramic spark ignition electrode

• 900mm high-temperature ignition lead

• Flat terminal suitable for compatible pulse igniters

• Natural gas injector included

• Suitable for commercial catering equipment maintenance and repairs

Product Specifications

• Part number: 232229

• Product type: Gas pilot burner kit

• Series: Blue Seal Evolution Series

• Thermocouple connection: M8 × 1

• Thermocouple length: Approximately 900mm

• Ignition lead length: Approximately 900mm

• Ignition terminal: 2.8 × 0.8mm flat terminal

• Gas configuration: Natural gas

• Condition: Brand new

Related Blue Seal Model Numbers

• GP514-B

• GP514-C

• BGP514-LS

Compatible Blue Seal Models

Gas Griddles

• AGP51

• GP51

Chargrills

• G592

• G594

• G596

• G598

Barbecues

• G59

• G59-4

Package Includes

• 1 × Three-Way Pilot Head Assembly

• 1 × Ceramic Ignition Electrode

• 1 × 900mm HT Ignition Lead with Flat Terminal

• 1 × 900mm Thermocouple

• 1 × Compression Olive

• 1 × Natural Gas Injector Jet

Important Gas-Type Information

This kit is supplied with a natural gas injector. An LPG injector is not listed as included.

Do not install this kit on an LPG appliance unless the correct approved LPG injector and conversion procedure are used by a suitably qualified engineer.

Compatibility Notice

Please compare the appliance model, part number, pilot design, thermocouple connection, ignition terminal and gas type with your existing assembly before ordering.

Model references are provided as a compatibility guide. Components may vary between appliance versions and manufacturing dates.

Installation Information

Gas components must be diagnosed, installed and tested by a suitably qualified Gas Safe engineer. The engineer must confirm the injector size, operating pressure, ignition performance and flame-failure safety operation before the appliance is returned to service.

Delivery and returns information can vary by product. Please contact us if you need confirmation before ordering.
