W29 PEL21S TYPE GAS CONTROL TAP / VALVE - FLAME SUPERVISON DEVICE

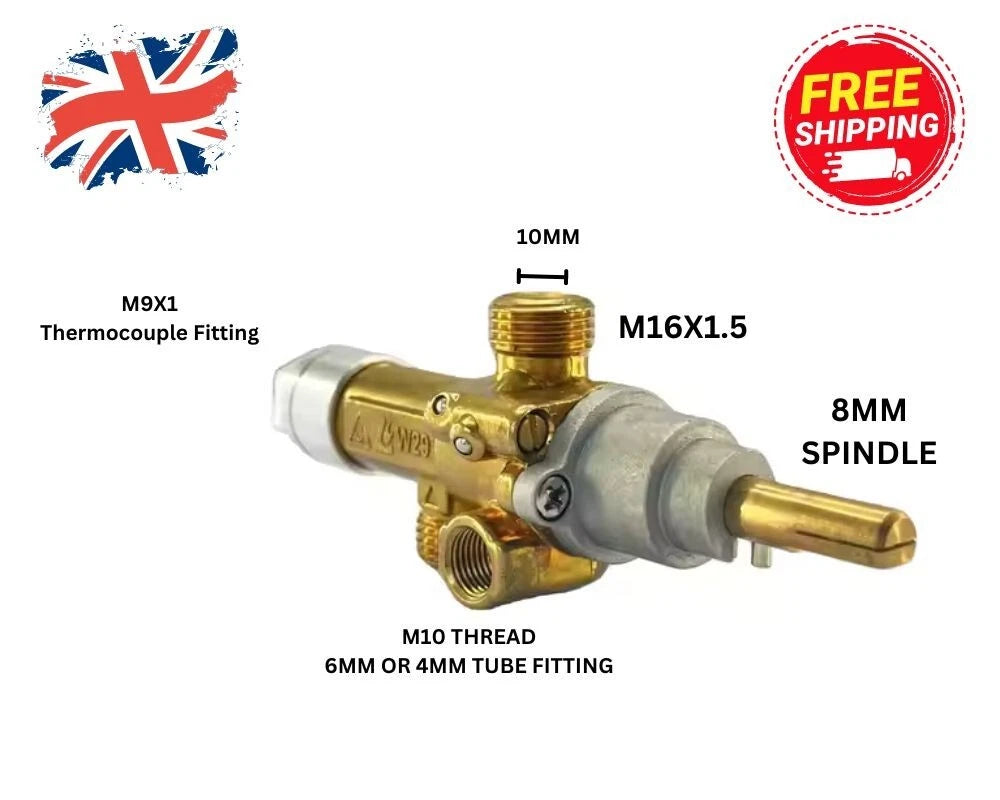

W29 Gas Control Valve – PEL 21S Compatible Replacement, M16 × 1.5 Connections

Replace a worn or faulty gas valve with this UKCP W29 gas control valve, designed as an equivalent replacement for compatible appliances using a PEL Type 21S valve.

The valve features M16 × 1.5 gas inlet and outlet connections, an M9 × 1 thermocouple connection and a bottom-flat control shaft. It is suitable for commercial catering and other gas appliances requiring the same valve dimensions and operating configuration.

Key Features

• W29 replacement gas control valve

• Equivalent to PEL Type 21S where specifications match

• M16 × 1.5 gas inlet and outlet connections

• Suitable for 10mm gas pipe connections

• M9 × 1 thermocouple connection

• 0.4mm bypass nozzle

• Bottom-flat control shaft position

• Suitable for compatible commercial gas appliances

• Ideal for servicing and repairs

Product Specifications

• Manufacturer: UKCP

• Model: W29

• Equivalent valve type: PEL 21S

• Gas inlet thread: M16 × 1.5

• Gas inlet pipe size: Approximately 10mm

• Gas outlet thread: M16 × 1.5

• Gas outlet pipe size: Approximately 10mm

• Bypass nozzle diameter: Approximately 0.4mm

• Thermocouple connection: M9 × 1

• Control shaft size: Approximately 8 × 6.5mm

• Control shaft length: Approximately 22mm overall / 15mm exposed

• Shaft-flat position: Bottom when the valve is in the OFF position

• Condition: Brand new

Package Includes

• 1 × UKCP W29 Gas Control Valve

Important Shaft Position

When the valve is in the OFF position, the flat side of the control shaft is positioned at the bottom.

Please check this carefully against your existing valve. Similar valves may have the shaft flat in a different position and may not be interchangeable.

Compatibility Notice

This valve should only be used as a replacement for a PEL 21S or similar valve when all specifications match. Please compare:

• Valve body and mounting arrangement

• Inlet and outlet thread sizes

• Gas pipe diameter

• Bypass nozzle size

• Thermocouple connection

• Control shaft dimensions

• Shaft-flat position

• Gas type and appliance requirements

Connection sizes alone do not confirm compatibility.

Installation Information

Gas control valves must be diagnosed, installed and tested by a suitably qualified Gas Safe engineer.

The installation must be tested for gas tightness, correct bypass flame, reliable flame-failure protection and safe burner operation before the appliance is returned to service.
