Pizza Dough Roller Machine Start/Stop Switch – 4 Pin, 16A, 250V

Replace a worn or faulty power switch with this durable 4-pin no-volt release start/stop switch. Designed for pizza dough rollers and other commercial catering machinery, it automatically switches off if the electrical supply is interrupted, helping prevent the machine from unexpectedly restarting when power returns.

Compatible with a wide range of equipment from manufacturers including Fimar, Sirman, Fama, Buffalo, and others.

Key Features

No-Volt Release Safety

The built-in no-volt release mechanism automatically disconnects the power during a power failure. The machine must then be manually restarted, helping protect both the operator and the equipment.

Suitable for Different Motor Types

• Induction motors up to 1.5 HP

• Brush motors up to 2 HP

• Suitable for pizza dough rollers and other commercial machinery

Durable Construction

Manufactured from durable plastic and metal components for reliable use in demanding commercial environments.

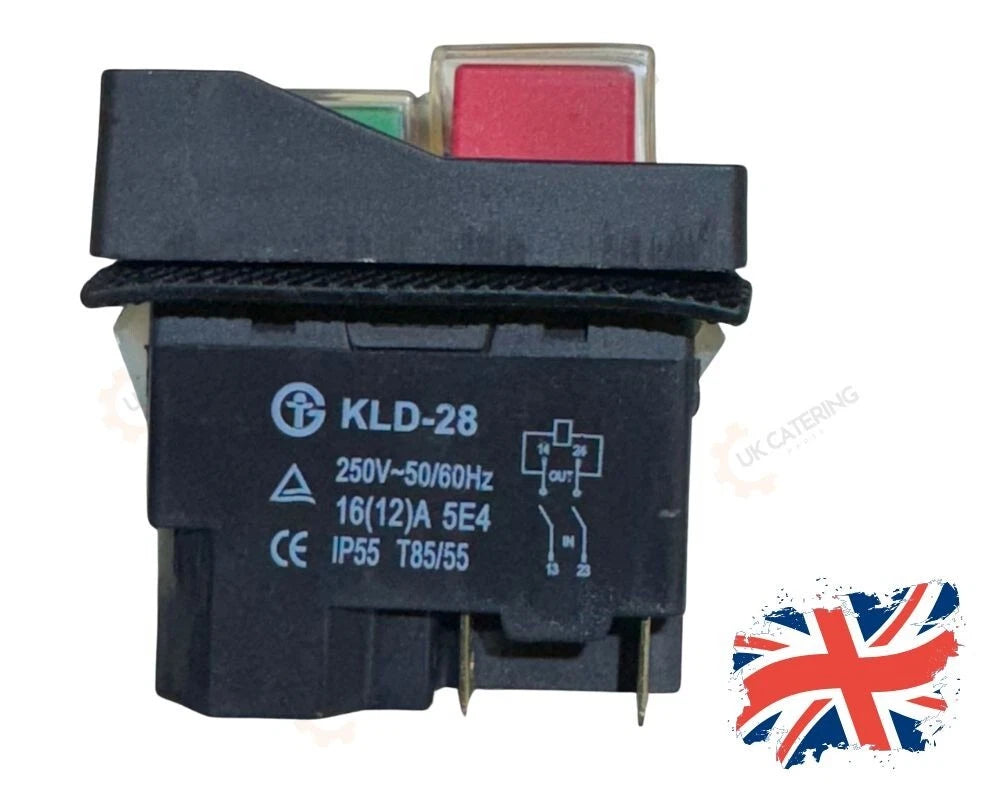

The switch features:

• Green START/ON button

• Red STOP/OFF button

• Protective black outer housing

• IP55-rated protection

Technical Specifications

• Switch type: No-volt release start/stop switch

• Number of pins: 4

• Voltage: 250V

• Current rating: 16A (12A)

• Frequency: 50/60Hz

• Protection rating: IP55

• Rated operating life: Up to 50,000 cycles

• Mounting cut-out: Approximately 45mm × 22mm

• Installation depth: Approximately 36mm

• Connections: Four push-fit terminals with marked input and output connections

• Colour: Black housing with red and green buttons

Compatible Equipment

Suitable for a wide range of pizza dough rollers and commercial catering machines, including:

• BUFFALO: CD277

• BUFFALO: CD278

• BUFFALO: CD279

• Fimar pizza dough rollers

• Sirman pizza dough rollers

• Fama pizza dough rollers

• Other compatible commercial machines using the same dimensions and electrical specifications

Please compare the terminal arrangement, mounting dimensions and electrical rating with your existing switch before ordering.

Looking for a 5-pin version? A compatible 5-pin switch is also available separately from our store.

Package Includes

• 1 × Four-Pin Start/Stop No-Volt Release Switch

Important Installation Information

This is an electrical component and should be installed by a suitably qualified technician. Always disconnect the equipment from the electrical supply before installation.

Product photographs and measurements are provided to help you confirm compatibility. Minor measurement differences may occur due to manual measuring, and the product colour may appear slightly different depending on your screen settings.
