Tandoor Gas Valve Shaan Shahi Clay Oven Control Tap Flame Supervision Device

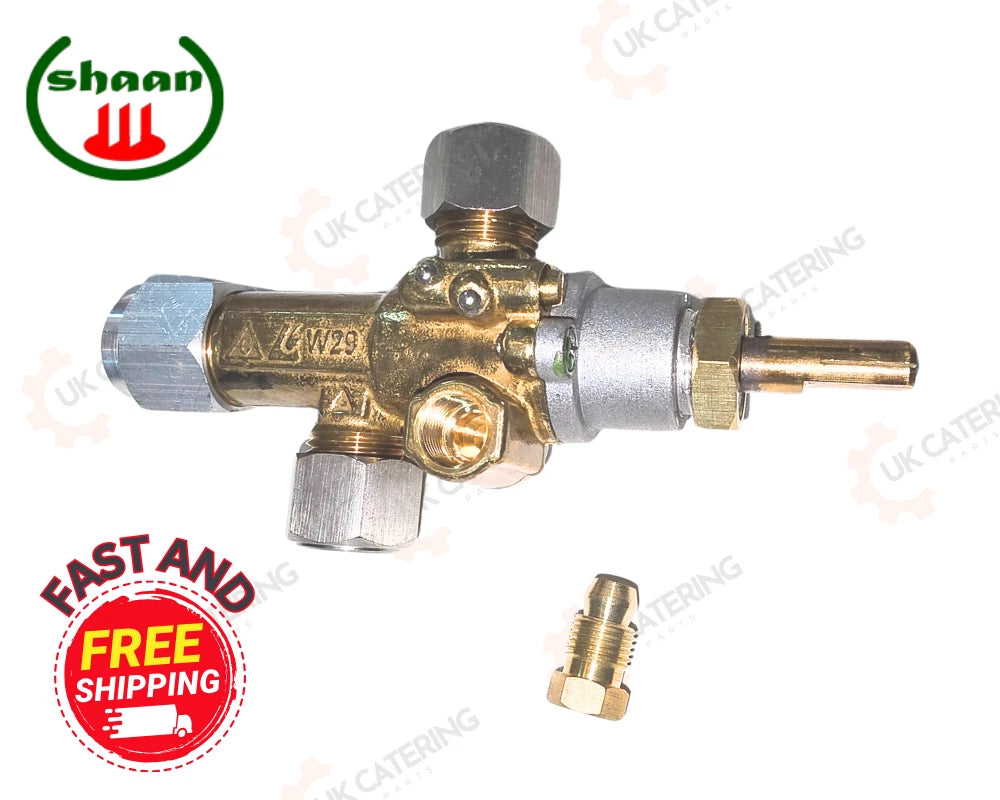

W29 Tandoor Gas Control Valve for Shaan and Shahi Clay Ovens – PEL 21S Compatible

Maintain safe and reliable gas control in your compatible tandoori oven with this UKCP W29 gas valve, designed as an alternative replacement for selected appliances using a PEL Type 21S valve.

Suitable for selected Shaan and Shahi clay tandoor ovens, the valve works with an M9 thermocouple as part of the appliance’s flame-failure safety system. When correctly installed, it helps stop the gas supply if the pilot flame is extinguished.

Key Features

• Replacement gas control valve for compatible tandoor ovens

• Suitable for selected Shaan and Shahi clay ovens

• Alternative to PEL Type 21S where specifications match

• M16 × 1.5 gas inlet and outlet connections

• Suitable for approximately 10mm gas pipe connections

• M9 × 1 thermocouple connection

• 0.4mm bypass nozzle

• Bottom-flat control shaft position

• Supports thermocouple-operated flame-failure protection

• Suitable for commercial catering equipment repairs

Product Specifications

• Manufacturer: UKCP

• Model: W29

• Equivalent valve type: PEL 21S

• Gas inlet thread: M16 × 1.5

• Gas inlet pipe size: Approximately 10mm

• Gas outlet thread: M16 × 1.5

• Gas outlet pipe size: Approximately 10mm

• Bypass nozzle diameter: Approximately 0.4mm

• Thermocouple connection: M9 × 1

• Control shaft size: Approximately 8 × 6.5mm

• Control shaft length: Approximately 22mm overall / 15mm exposed

• Shaft-flat position: Bottom when the valve is in the OFF position

• Condition: Brand new

Suitable Applications

May be suitable for selected:

• Shaan tandoori clay ovens

• Shahi tandoori clay ovens

• Commercial gas tandoors

• Other gas appliances originally fitted with a matching PEL 21S valve

Package Includes

• 1 × UKCP W29 Gas Control Valve

Important Shaft Position

When the valve is in the OFF position, the flat side of the control shaft should be positioned at the bottom.

Please compare this detail carefully with your existing valve. Similar-looking valves with a different shaft position may not operate correctly with the existing control knob.

Compatibility Notice

This valve should only replace a PEL 21S or similar gas valve when all specifications match. Before ordering, compare:

• Valve body and mounting arrangement

• Gas inlet and outlet threads

• Gas pipe diameter

• Bypass nozzle size

• Thermocouple connection

• Control shaft dimensions

• Shaft-flat position

• Appliance gas type and operating requirements

Connection sizes alone do not confirm compatibility.

Installation Information

Gas control valves must be diagnosed, installed and tested by a suitably qualified Gas Safe engineer.

The completed installation must be checked for gas tightness, correct bypass flame, reliable flame-failure protection, operating pressure and safe burner performance before the oven is returned to service.
