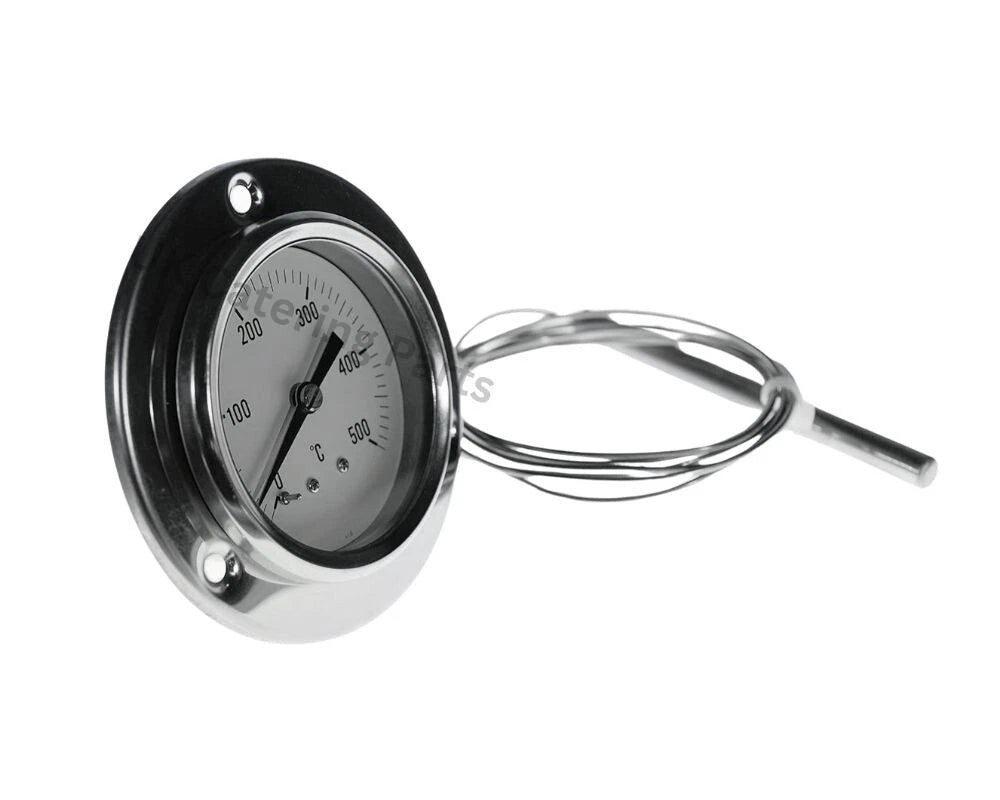

THERMIS Capillary thermometer TTK2440 (0-500°C) | Temperature display

Industrial Capillary Thermometer 0–500°C – 1 Metre Stainless-Steel Capillary

Measure temperature remotely in demanding industrial applications with this European-made capillary thermometer, designed for heating, hydraulic, sanitary and power-engineering systems.

The thermometer features a stainless-steel case, stainless-steel sensor and a glass inspection window. Its 1-metre capillary allows the display head to be positioned away from the measurement point, while the 8mm sensor can be installed directly or placed inside a suitable thermometer pocket.

Key Features

• Made in the European Union

• Wide measuring range from 0°C to 500°C

• Suitable for remote temperature measurement

• Stainless-steel thermometer head and sensor

• One-metre stainless-steel capillary

• Front-flange mounting design

• Clear glass inspection window

• Pressure resistance up to 25 bar

• Suitable for industrial and commercial systems

• Sensor may be fitted directly or inside a thermometer well

Product Specifications

• Product type: Industrial capillary thermometer

• Model: 2440

• Temperature range: 0–500°C

• Capillary length: Approximately 1 metre

• Sensor diameter: Approximately 8mm

• Accuracy class: 2.5%

• Permitted tolerance: ±2.5% across the full scale

• Pressure resistance: Up to 25 bar

• Mounting type: Front flange

• Inspection window: Glass

Materials

• Stainless-steel head: Grade 17 240 / 1.4301

• Stainless-steel sensor: Grade 17 248 / 1.4541

• Capillary: Stainless steel

Suitable Applications

Ideal for temperature monitoring in:

• Heating systems

• Sanitary installations

• Heating-management systems

• Power engineering

• Hydraulic systems

• Industrial machinery

• Process equipment

• Boilers and heat-management equipment

Operating Environment

The stainless-steel thermometer head is suitable for installation in standard environments within an ambient temperature range of approximately:

• -30°C to +110°C

The sensor may be installed freely or placed inside a compatible thermometer pocket or thermowell.

Package Includes

• 1 × Industrial Capillary Thermometer

• 1 × Stainless-Steel Sensor

• 1 × One-Metre Stainless-Steel Capillary

Compatibility and Installation Notice

Please confirm the temperature range, sensor diameter, mounting dimensions, capillary length and pressure requirements before ordering.

Installation should be completed by a suitably qualified engineer. The correct thermometer well, sealing arrangement and mounting method must be selected for the operating temperature, pressure and application.

Delivery and returns information can vary by product. Please contact us if you need confirmation before ordering.
