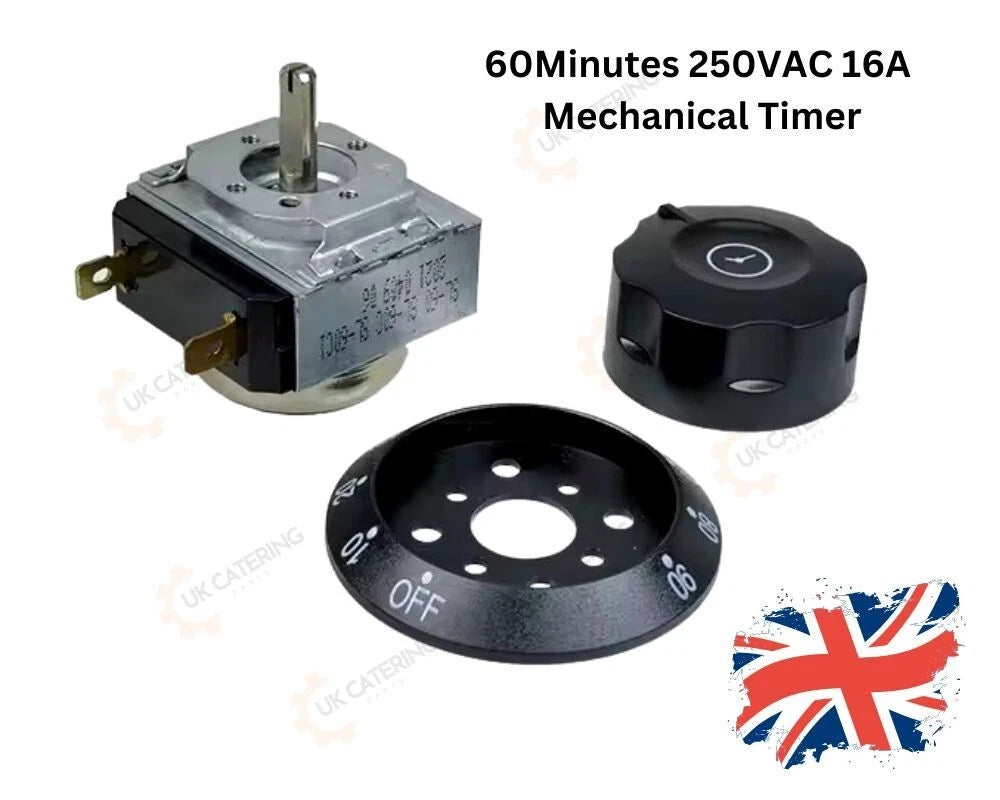

Universal Oven Mechanical Timer Switch with Bell, 60-Minute Run Back

Universal 60-Minute Mechanical Oven Timer Switch with Bell and Control Knob

Replace a worn or faulty oven timer with this universal 60-minute mechanical run-back timer switch. The timer is manually wound and counts down for up to one hour, switching the connected appliance circuit when the selected time has elapsed and sounding an audible bell.

Its mechanical timing mechanism does not require a separate electrical power supply to count down. The integrated electrical contacts can be connected to compatible equipment requiring a single-pole, normally open timer switch.

Key Features

• Adjustable countdown time of up to 60 minutes

• Mechanical wind-up operation

• Audible bell sounds at the end of the selected time

• Single-pole switching arrangement

• Normally open contact configuration

• Rated for loads up to 16A at 250V

• Supplied with a control knob

• Suitable for compatible ovens and catering appliances

• Ideal for replacing a damaged or unreliable timer

Product Specifications

• Maximum timer duration: 60 minutes / 1 hour

• Timer type: Mechanical run-back timer

• Contact function: 1NO – normally open

• Number of poles: 1

• Electrical rating: 16A at 250V

• Shaft size: Approximately 6 × 4.6mm

• Shaft length: Approximately 22.5mm

• Mounting-hole distance: Approximately 23.5mm

• Mounting thread: M3

• Terminal type: 6.3mm male Faston

• Fixing arrangement: Four-hole fixing

• Shaft-flat position: Upper

Suitable Applications

This universal timer may be suitable for compatible:

• Commercial ovens

• Domestic ovens

• Catering appliances

• Food-warming equipment

• Other appliances requiring a 60-minute mechanical timer

Package Includes

• 1 × 60-Minute Mechanical Timer Switch

• 1 × Control Knob

Compatibility Notice

This is a universal replacement component. Please compare the shaft dimensions, mounting-hole spacing, fixing arrangement, electrical rating and terminal configuration with your existing timer before ordering.

Installation Information

Electrical components should be installed and tested by a suitably qualified engineer. Always isolate the equipment from the electricity supply before beginning installation.
